Why Concrete Mix Ratio is the Biggest Reason Behind Site Failures

On paper, most constructions look perfect. But on site, things change. A mason adds extra water to make mixing easier. A contractor uses random buckets instead of proper measurements. Compaction is skipped to save time.

The result is not visible immediately—but within months:

• • Slabs start cracking
• • Columns lose strength
• • Footings begin to settle

Concrete is not just about mixing materials—it is about precision, process, and execution. This guide will help you understand not just what ratio to use, but how to actually achieve it correctly on site.

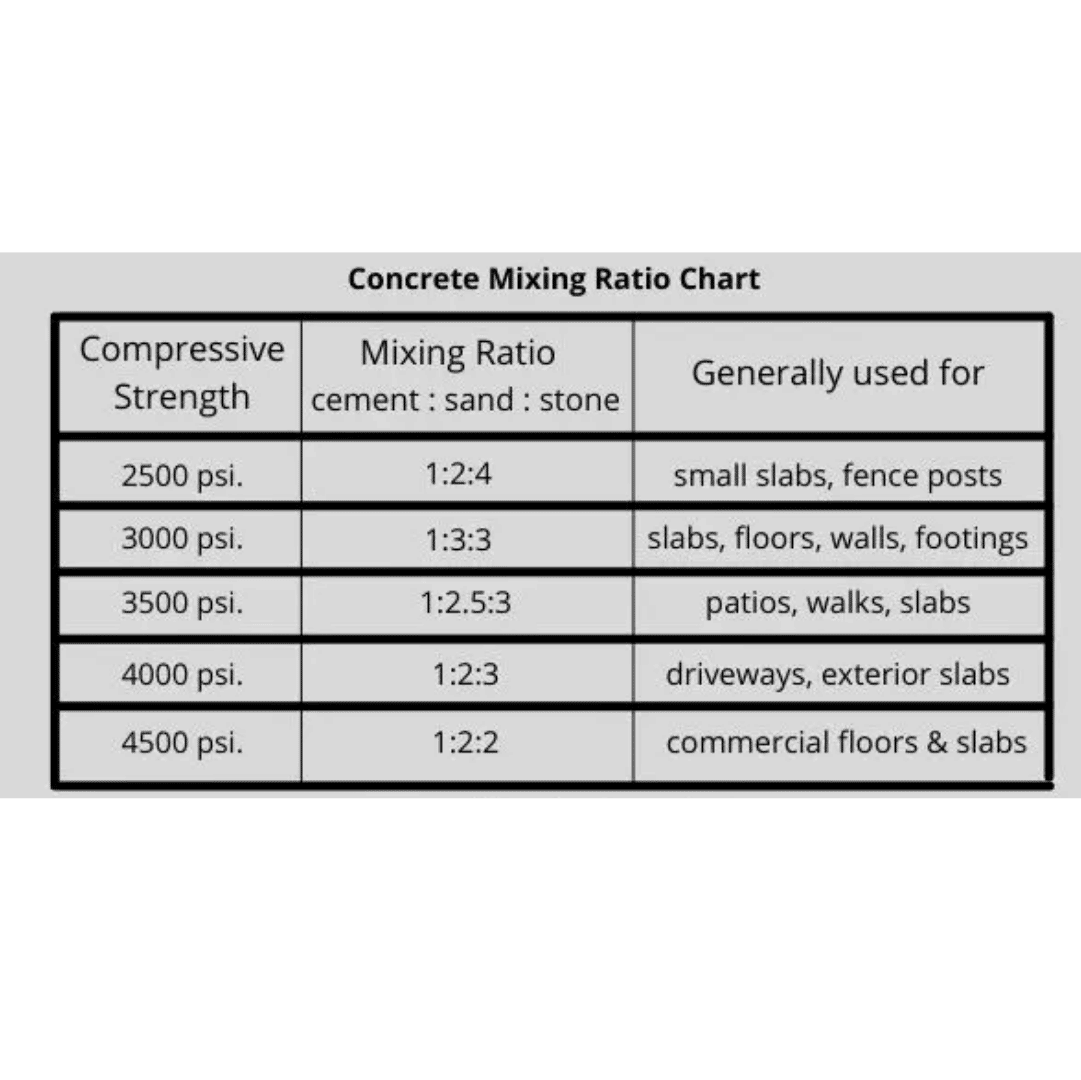

What is Concrete Mix Ratio (Detailed Understanding)

Concrete mix ratio defines how much cement, sand, and aggregate are used in a mix. But practically, it controls much more than that. Cement acts as the binding material. Sand fills the gaps between aggregates. Aggregate provides bulk strength. If this balance is disturbed, the entire structure is compromised.

For example, if sand is too much, the concrete becomes weak. If cement is too less, bonding reduces. If water is too high, strength drops drastically.

That’s why ratio + water control + mixing quality all matter equally.

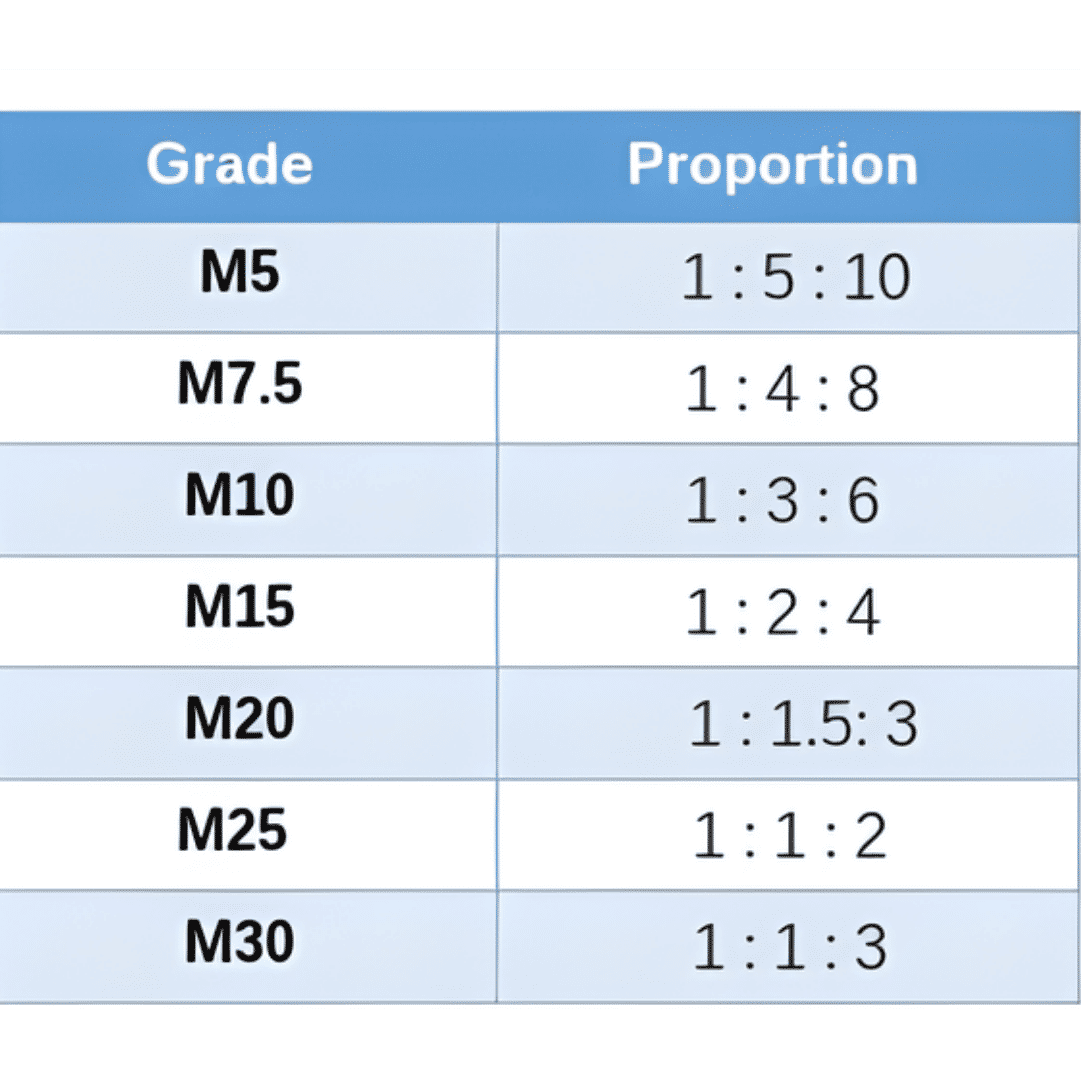

Concrete Grades Explained

Concrete grade is not just a number—it represents the strength your structure will achieve after 28 days.

• • M20 means 20 MPa strength
• • M25 means 25 MPa strength

But here’s what most people don’t understand: Strength on paper ≠ Strength on site If mixing, compaction, or curing is poor, even M25 can behave like M15.

M20 vs M25 – Real Site Difference

Simple understanding: Slabs distribute load → M20 is enough Columns carry load → M25 is mandatory

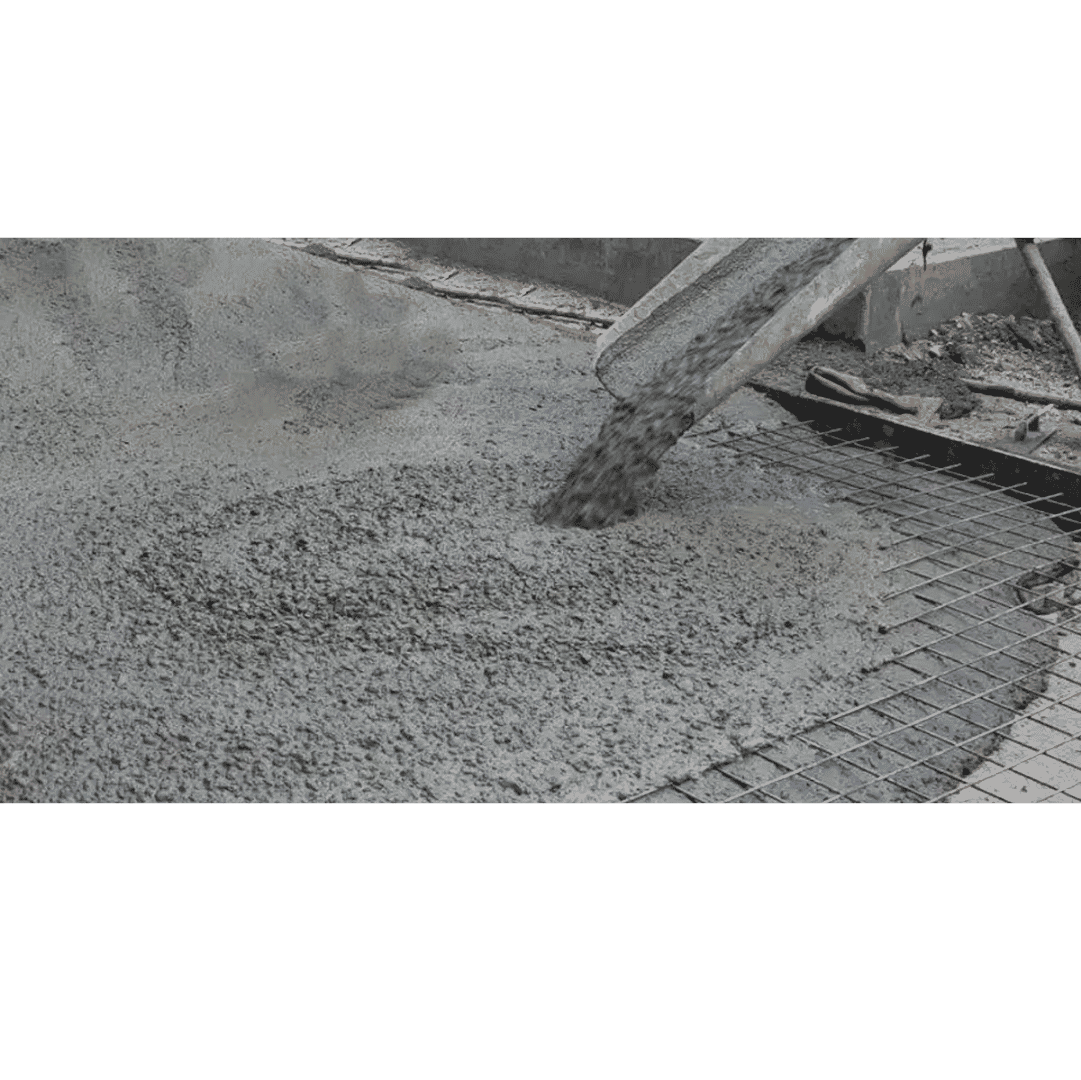

Concrete Mix Ratio for Slab (Full Practical Execution)

Recommended Mix - M20 (1:1.5:3)

Step 1: Mixing – Where Most Sites Go Wrong

On small sites, mixing is often done manually. Workers mix cement, sand, and aggregate on the ground using shovels. This creates three major problems:

• • Uneven mixing (some portions weak, some strong)
• • Wrong proportions (no measurement control)
• • Time wastage

Using a Mini Mixer solves this completely.

It ensures uniform mixing of all materials, correct ratio maintained every batch, and faster output with less labor. In practical terms, this directly increases slab strength and reduces future repair costs.

Step 2: Leveling – Strength Depends on Uniformity

After pouring concrete, the surface is uneven. If this unevenness is not corrected:

• • Load distribution becomes irregular
• • Weak points develop

A Screed Vibrator is used to level the concrete. It vibrates the surface, removes trapped air, and spreads concrete evenly.

Step 3: Surface Finishing – More Than Just Looks

Proper finishing improves surface strength, reduces dusting, and prevents cracks.

A Bull Float is used immediately after pouring to smoothen the surface.

Then a Power Trowel is used for final finishing.

For large projects,Ride onPower Trowel a Ride on Power Trowel is used for faster and uniform finishing.

Slab Mistake Explained

When workers add extra water, bonding reduces and micro cracks form, which grow over time.

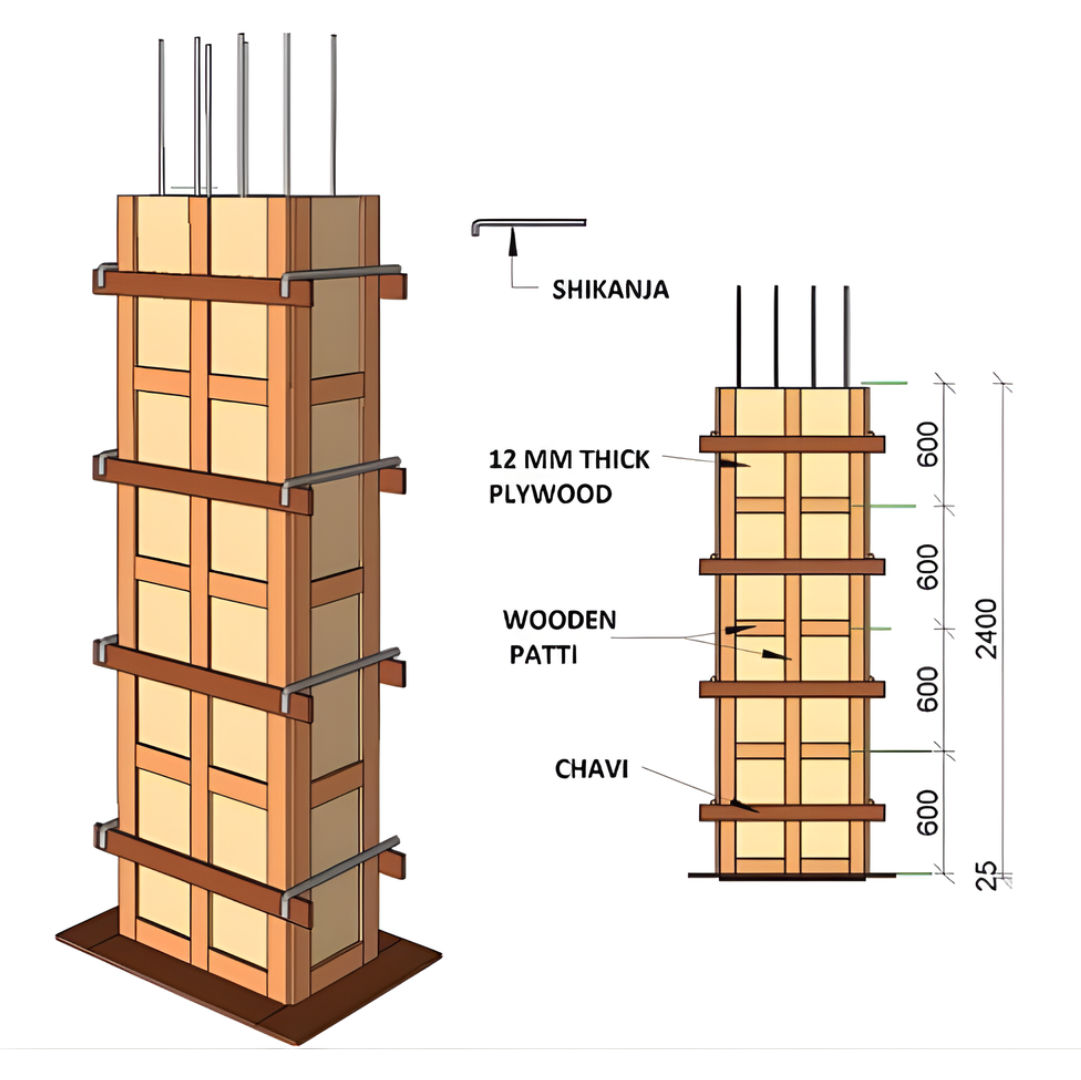

Concrete Mix Ratio for Column

Recommended Mix - M25 or Design Mix

Columns carry the entire building load. If strength is compromised, structural failure risk increases.

A Dumper helps maintain continuous material flow and avoids delays.

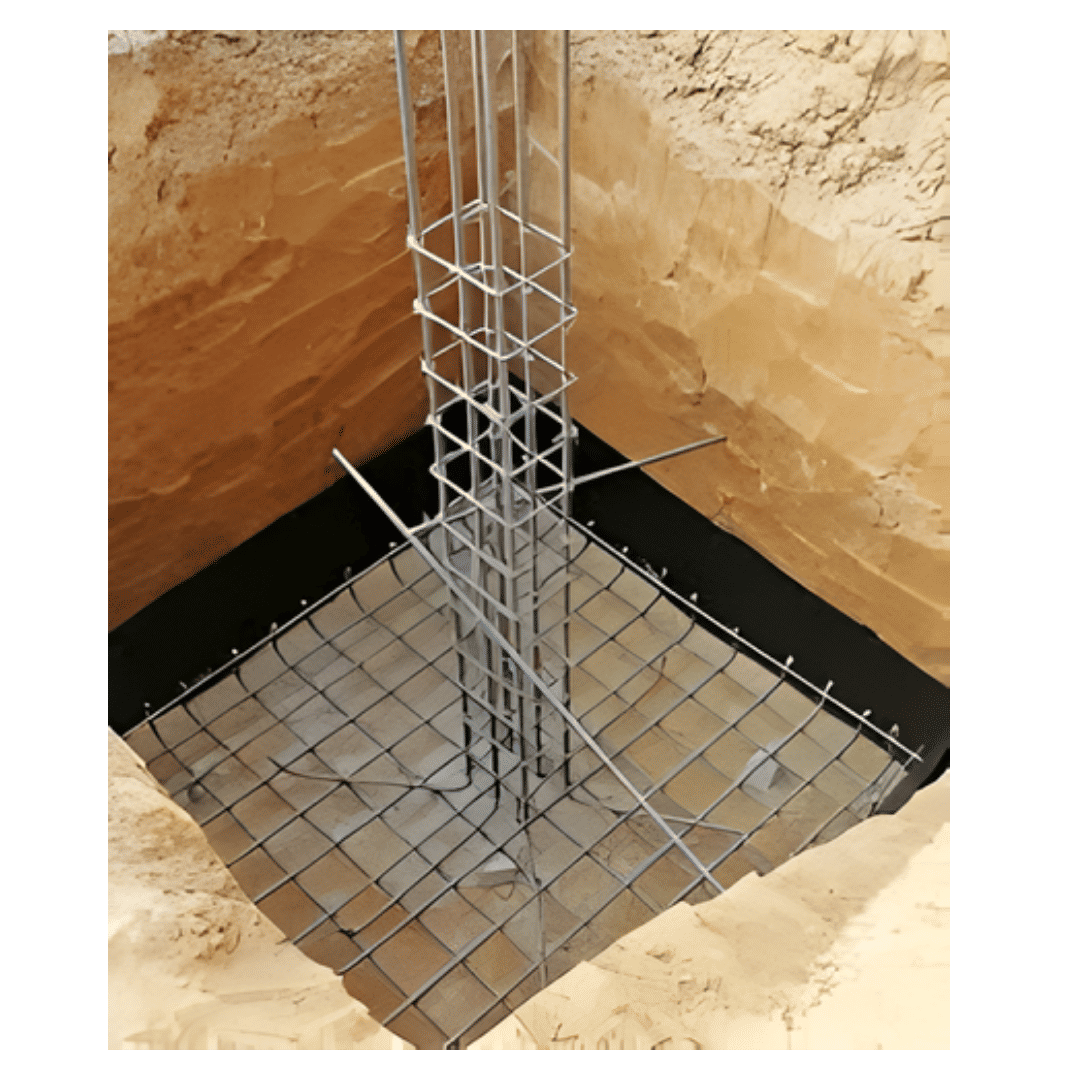

Concrete Mix Ratio for Footing

Step 1: Soil Compaction

Before concrete is poured, the soil must be compacted properly.

• • Tamping Rammer
• • Plate Compactor

Step 2: PCC Layer

Ratio: 1:3:6

Step 3: RCC Footing

M20 (1:1.5:3)

Concrete Quantity Calculation

• • Cement → 7–8 bags
• • Sand → 0.5 m³
• • Aggregate → 1 m³

Post-Concrete Work

A Concrete Grinding Machine is used to remove uneven surfaces and improve finish.

A Concrete Cutter is used to create expansion joints and prevent cracks.

Quick Summary Table

Q1.What is the best concrete mix ratio for slab?

Ans-M20 (1:1.5:3) is ideal.

Q2.Why is compaction important?

Ans-It removes air voids and increases strength.

Q3.Which machine is best for slab finishing?

Ans-Power Trowel or Ride-on Power Trowel.

Concrete quality is not just about ratio—it is about execution. If you combine correct mix ratio, proper equipment, and good site practices, you get a strong structure, long life, and low maintenance.
